Wire stripping and twisting machine WPM-09T
Wire stripping and twisting machine WPM-09T
  • Wire stripping and twisting machine WPM-09T

  • Model No: WPM-09T

  • Wire stripping and twisting machine,Wire Cutting Stripping Twisting Machine, Wire Cut Strip Twisting Machine, Wire Stripping Machine
    Wire cross-section: 0.1-2.5sq.mm
    Conduit diameter: 6mm
    Twisting length: Head side 0-35mm
    Tail side 0-20mm
    Cutting length: 1-100000 mm
    Measurement: 39*35*25cm
    <>

  • Inquiry now
Detailed description

Wire stripping and twisting machine, Wire Cutting Stripping Twisting Machine, Wire Cut Strip Twisting Machine, Wire Stripping Machine
Features:
Automatic Full Computer Wire Stripping Machine
Adopt advanced automation technology from Japan, and Taiwan.
It is a kind of numerical control equipment.

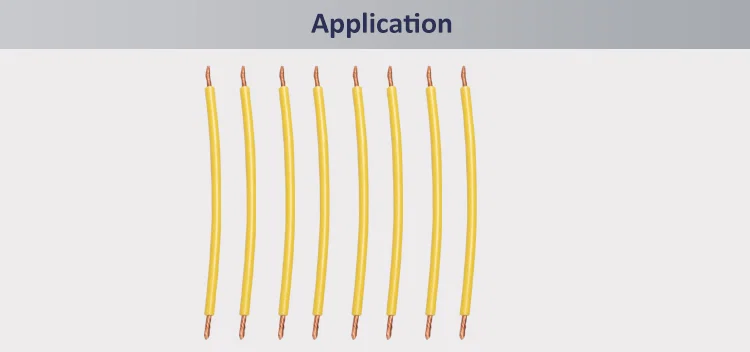

 Apply for:
Widely used in the electronics industry, the city has electrical appliances, motors, lamps, toys,
and other various products of wire processing.
Optimal stripped wire PVC/Teflon/silica gel line /. Glass fiber, etc.
Specification:
 Available Wire Cross-Section Range: 0.1-2.5mm2
Conduit Diameter: ¢6mm
Cutting Length: 1~100000 mm
Cutting tolerance: ± (0.002 × L) (Cutting length)
Stripping Length: Head 0~35mm, Tail 0~20mm
Twisting Length: Head 0~35mm, Tail 0~20mm
Middle Stripping Section: Max 16
Speed: 4000-10000pcs/h(High quantities)
Display Way: English/Chinese LCD
Drive Mode: 4 Drives
Blade Material: Hard tungsten steel
Appropriate Wire: Electrical wires, PVC/Silica gel line/Glass fiber cables
Power Supply: 220V/50Hz 110V/60Hz
Power Rating: 450W
Measurement: 390X350X255mm
Weight: 42kg
Wire Cutting Stripping Twisting Machine, Wire Cut Strip Twisting Machine, Wire Stripping Machinesample display of Wire Cutting Stripping Twisting Machine, Wire Cut Strip Twisting Machine, Wire Stripping Machine








<>
