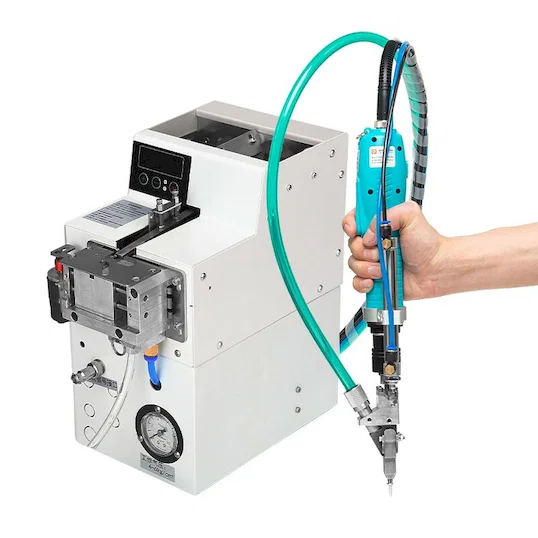

Detailed description Screw Feeder, Screw Feeding Machine, Screw Lock Machine
Automatic screw feeder, Factory working line screw locking feeding machine is suitable for screws whose screw diameter is M1.0-M5.0 mm and the tooth length is less than or equal to 20 mm. It is especially suitable for precise screws such as locks and mobile phones.
Adopt the original vibration motor from Japan, and the vibration amplitude is in a linear state, ensuring the smooth and stable moving state of screws.
Product Model WPM-1050H
Ambient temperature -10 degrees to 40 degrees
Applicable specifications Screw diameter M1.0-M5.0, thread length less than 20 mm
Feeding efficiency 0.5s/pcs
Positioning accuracy 0.01 mm
Power consumption 25W
Feeding method Turntable impeller loading
Power supply AC220V 50HZ to 12V
Weight 3KG
Dimension  25*15*18 cm
