copper belt crimping copper wire joint splicing machine cable terminal
copper belt crimping copper wire joint splicing machine cable terminal
  • Copper belt crimping copper wire joint splicing machine cable terminal

  • Model No:

  • copper belt crimping, copper wire joint splicing machine cables terminal making machine
    Model TDJ-1.8T TDJ-3.0T TDJ-4.0T
    Power supply voltage AC220V 50/60HZ
    Pressing force 1800kg 3000KG 4000KG
    Motor power 0.55KW 1.0KW 1.5KW
    Feed length 22mm 32mm 42mm
    Copper strip width 2/4/6mm 6/8/10mm 6/8/10mm
    Size 310x450x480mm 330x600x630mm 430x700x730mm
    Weight 45kg 110kg 130kg

  • Inquiry now
Detailed description

copper belt crimping, copper wire joint splicing machine cables terminal making machine

Features:
Adopting high-tech frequency conversion technology; electronic precise positioning; when the motor is crimped, the noise is smaller than the traditional copper belt machine, and it saves electricity; the mold adjustment is more convenient and quick; avoid the common failures of the traditional terminal machine clutch, electromagnet, etc.!
1. This machine is specially designed for wires that need to be processed by fusion, with fast speed and good quality;
2. The wire is connected by the crimping method, replacing the traditional soldering method, without the shortcomings of cold welding, air welding, and air pollution. It is the easiest and most effective way to pass various safety standard tests;
3. The use of special continuous copper tape terminals (patents are on file, please do not counterfeit) materials are cut, formed, pressed, and completed at one time, quickly and without waste, saving costs;
4. The copper strip terminal has been treated with special textures and has strong tensile strength after being folded, and the quality is stable; 5. It is suitable for earphone cables, data cables, electronic cable docking, resistance/lamp docking, automobile wiring harness, etc., humanized design, without training, can be operated at any time.

Model

TDJ-1.8T

TDJ-3.0T

TDJ-4.0T



Power supply voltage

AC220V 50/60HZ

Pressing force

1800kg

3000KG

4000KG



Motor power

0.55KW

1.0KW

1.5KW



Feed length

22mm

32mm

42mm



Copper strip width

2/4/6mm

6/8/10mm

6/8/10mm



Size

310x450x480mm

330x600x630mm

430x700x730mm



Weight

45kg

110kg

130kg

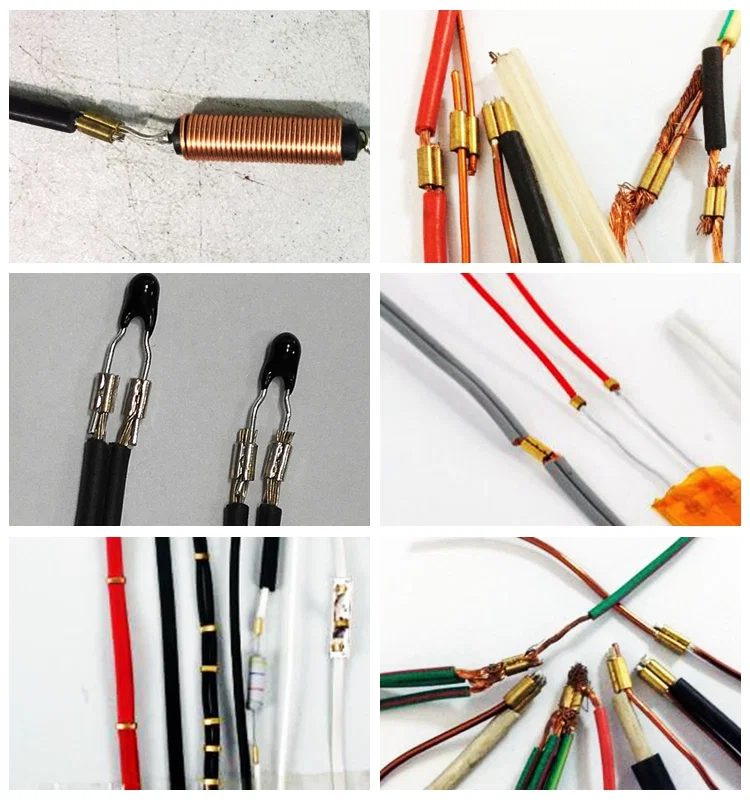

Processing result
 copper belt crimping, copper wire joint splicing machine cables terminal making machine
