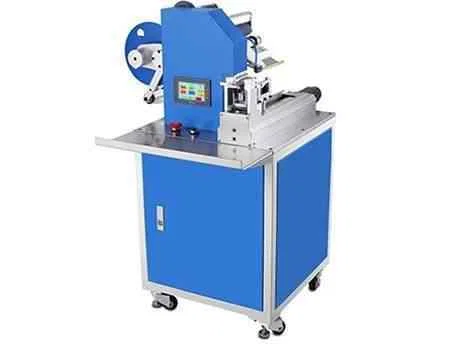

cable label printer and wire labeling machine WPM-6130
cable label printer and wire labeling machine WPM-6130
  • Cable label printer and wire labeling machine WPM-6130

  • Model No: WPM-6130

  • cable label printer and wire labeling machine,Cable Wire Harness Tube Machine, Labeling Print Machine, Labeling Tape Wrapping Machine
    Power AC110-240, 50/60Hz
    Labeling Capacity 15-20 pcs/min
    Labeling Accuracy ±1.0mm
    Applicable Product Size Customized
    Applicable Label Size L: 20-320mm; W: 20-140mm
    Dimensions L750 X W500 X H1150mm
    Weight 90kg


  • Inquiry now
Detailed description

 cable label printer and wire labeling machine, Cable Wire Harness Tube Machine, Labeling Print Machine, Labeling Tape Wrapping Machine
Applicable for folding labels on all kinds of wires and cables, such as power lines, computer peripheral cables, electronic sensor cables, headphone cables, power lines, fiber-optical lines, cable lines, people cables, USB cables, cables of fax/printers, etc.
Applicable for a wide range of products size, easy to adjust and replace different products.
Operation process:
Core principle: the sensor detects the product passing by, returns the signal to the labeling control system, the signal is processed via PLC processing, delivers the label to the preset product position at the appropriate time, when the product flows through the covering mechanism, labels will be covered solid, labeling action is completed.
Features:
* Wide range of applications, suitable for different specification products;
* Convenient use, wide range adjustment, labeling on different specification products.
* High stability, advanced electronic control system consisting of Panasonic PLC + Germany label electric eye, support equipment 7 × 24-hour operation;
Range of application:
Applicable Label: self-adhesive label/film, electronic monitoring code, barcode, and so on.
Application: wire and cable, large width, multi-specifications, high precision folding label products.
Applicable Industry: Widely used in electronics, wire, cable, and other industries.
application: wires labeling, computer peripheral labeling, USB cable, etc.
The folding devices can be adjusted, the non-product range can be customized according to the customer


Power

AC110-240, 50/60Hz

Labeling Capacity

15-20 pcs/min

Labeling Accuracy

±1.0mm

Applicable Product Size

Customized

Applicable Label Size

L: 20-320mm;  W: 20-140mm

Dimensions

L750 X W500 X H1150mm

Weight

90kg
