Detailed description

1.1 Equipment Overview
WPM-001N ultrasonic wiring harness welding machine is an economical portable welding machine designed as a whole machine. It has the advantages of exquisite and lightweight appearance, small footprint, safe and simple operation, and low maintenance cost. It can provide enterprises with efficient welding methods and reduce production costs. It is suitable for 0.5mm² - 20mm² copper wire harness welding, in automobiles, instrumentation, communication equipment, household appliances, and other widely used fields.

1.2 Equipment features
  High-quality imported ultrasonic transducer, strong power, good stability
  Welding speed is fast, high energy efficiency, and can be completed within 10 seconds of a welding
  Easy to operate, no need to add auxiliary materials
  Multiple welding modes are supported
  Prevent air welding and effectively prevent welding head damage
  Hd LED display, intuitive data, real-time monitoring, effective guarantee of welding yield

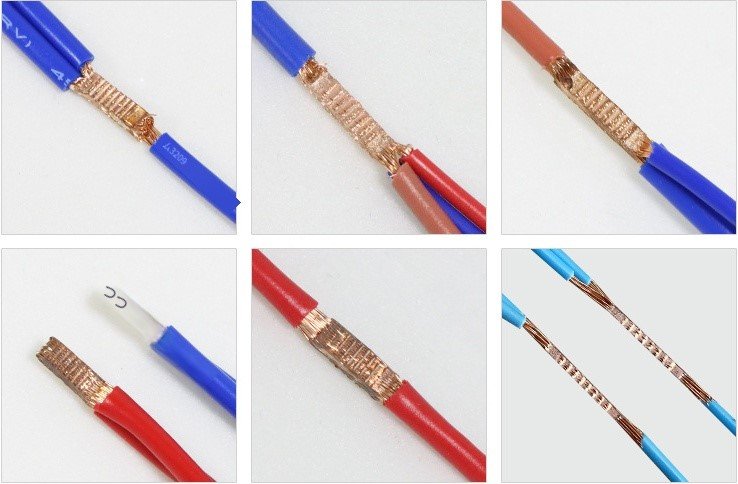

1.3 Welding effect display

1.4 Technical parameters of equipment
Operating frequency 20KHz
Rack size 517*142*181(mm)
Chassis dimensions 453*300*178(mm)
Input voltage AC 220V/50Hz
Weld the square of the harness 0.5mm² - 20mm² copper wire
Welded copper wire (aluminum wire) wire diameter Φ 0.3 mm or less
Equipment power 2000W
Equipment weight 20kg(welding rack)+13kg(electric box)
Display mode 7 "touchscreen
Production efficiency
About 0.6s/ time, depending on the square of the weld
Core piece Generator, transducer, welding head
Moving parts Cylinder, stepping motor

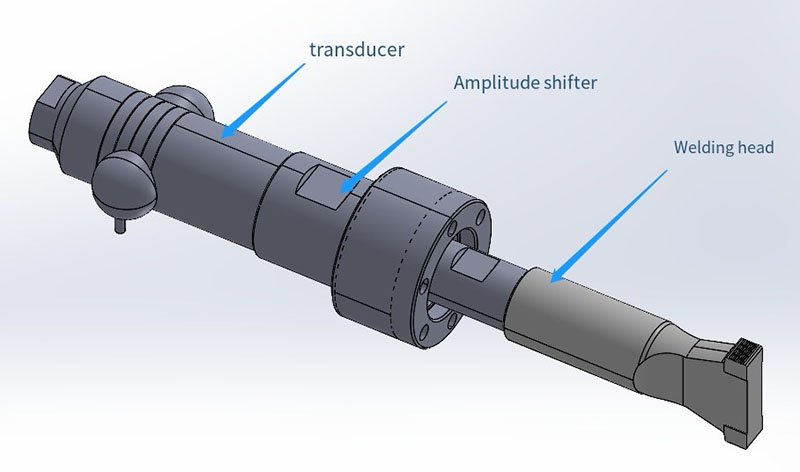

1.5 Equipment structure


1.6 Application Fields
