Coaxial Cable Stripping Machine - Precision - WPM-6806

Name: Coaxial Cable Stripping Machine - Precision - WPM-6806
Brand: Industrial Wire & Cable Cutters
SKU: WPM-6806
Availability: InStock
Rating: 5 (1 reviews)

Model No: WPM-6806
Coaxial cable stripping machine, Coaxial Cable Strip Equipments, Coaxial Cable Stripping Machines, Coaxial Cable Stripper
Max. Stripping length 48mm
Cutting depth 0.01mm
Capacity 700-1200pcs/h (depends on wire material)
Wire diameter 0.1-6.99mm
Length accuracy ±(0.002*L) mm
Max. stripping layer 9 layers
Noise level <70dBA
Display Touch Screen
Inquiry now

Detailed description

Coaxial cable stripping machine, Coaxial Cable Strip Equipments, Coaxial Cable Stripping Machines, Coaxial Cable Stripper
Features
1. Suitable for different types of semi-flexible and flexible coaxial wires, charging cables, and medical wires' processing in communication and the medical industry. The stripping edge is smooth and no harm to the conductor.
2. Huma-computer interface, easy to operate and understand, Max. 9 layers of stripping and 99 sets of memory function.
3. Rotation blades head, four pieces of exquisitely designed blades improve stripping stability and blades' lifetime.
4. Adopt servo-motor, precision ball screw, and multi-point movement control system, working performance is stable and efficient.
5. Blades are made of imported tungsten steel and titanium alloy coating. sharp and durable.
6. This machine can meet multi-section stripping, stripping & twisting, automatic start in succession, and other special requirements.
Model WPM-6806
Max. Stripping length 48mm
Cutting depth 0.01mm
Capacity 700-1200pcs/h (depends on wire material)
Wire diameter 0.1-6.99mm
Length accuracy ±(0.002* L) mm
Max. stripping layer 9 layers
Noise level <70dBA
Display Touch Screen
Knife blade 2, material: Imports Switzerland tungsten steel
Centering slab 2, material: Imports tungsten steel
The clip-wire device automatically adjusts the core, the dynamo drives, and clip tight strength process control.
Delivery Information
Dimensions and weight 600*185*280mm 24KG
Power supply 220V/50HZ/ 110V/60HZ 400W
Port of Loading: XIAMEN/SHENZHEN
Lead time Normally in3-5days after the deposit received

Coaxial Cable Stripping Machine, Automatic Coaxial Cable Machine, Micro Coaxial Cable Stripping Machine, Coax Cable Stripping Machine, Coaxial Wire Stripper Machine, Wire Stripper, Coaxial Wire Stripping Machine, Coaxial Stripping Machine, Wire Stripper Machine

Coaxial Cable Stripping Machine, Automatic Coaxial Cable Machine, Micro Coaxial Cable Stripping Machine, Coax Cable Stripping Machine, Coaxial Wire Stripper Machine, Wire Stripper, Coaxial Wire Stripping Machine, Coaxial Stripping Machine, Wire Stripper Machine

sample display of Coaxial Cable Stripping Machine, Automatic Coaxial Cable Machine, Micro Coaxial Cable Stripping Machine, Coax Cable Stripping Machine, Coaxial Wire Stripper Machine, Wire Stripper, Coaxial Wire Stripping Machine, Coaxial Stripping Machine, Wire Stripper Machine

Coaxial cable stripping machine, Coaxial Cable Strip Equipments, Coaxial Cable Stripping Machines, Coaxial Cable Stripper

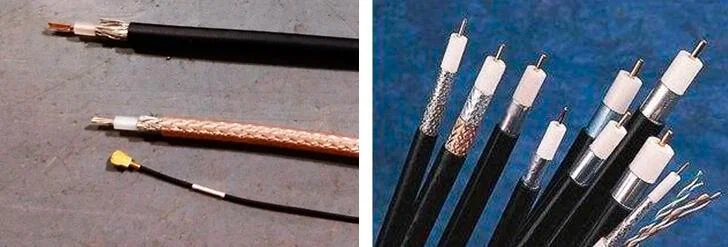

Coaxial cable stripping machine processing result

Model	WPM-6806	WPM-8608	WPM3512	WPM-4520
Wire Diameter	0.81-6.99mm	3.0-18mm	5mm-35mm	5.0-45mm
Cutting depth	0.01mm	0.01mm	0.01mm	0.01mm
Working efficiency	700-1200PCS/H	400-800PCS/H	200-500PCS/H	200-500PCS/H
Max. stripping length	48mm	90mm	120mm	200mm
Max. stripping layer	9 layers	9 layers	9 layers	9 layers
Dimensions	600185280mm	720280350mm	1040280550mm	1160280550mm
Weight	26kg	40kg	60kg	70kg
Power supply	220V/110V/50HZ/60HZ	220V/110V/50HZ/60HZ	220V/110V/50HZ/60HZ	220V/110V/50HZ/60HZ
Power rating	400w	500w	1000w	1000w
