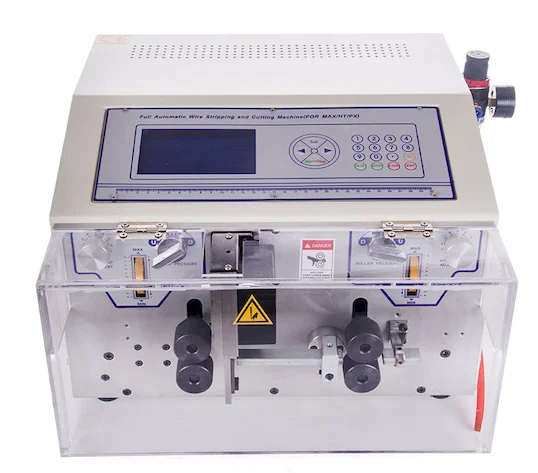

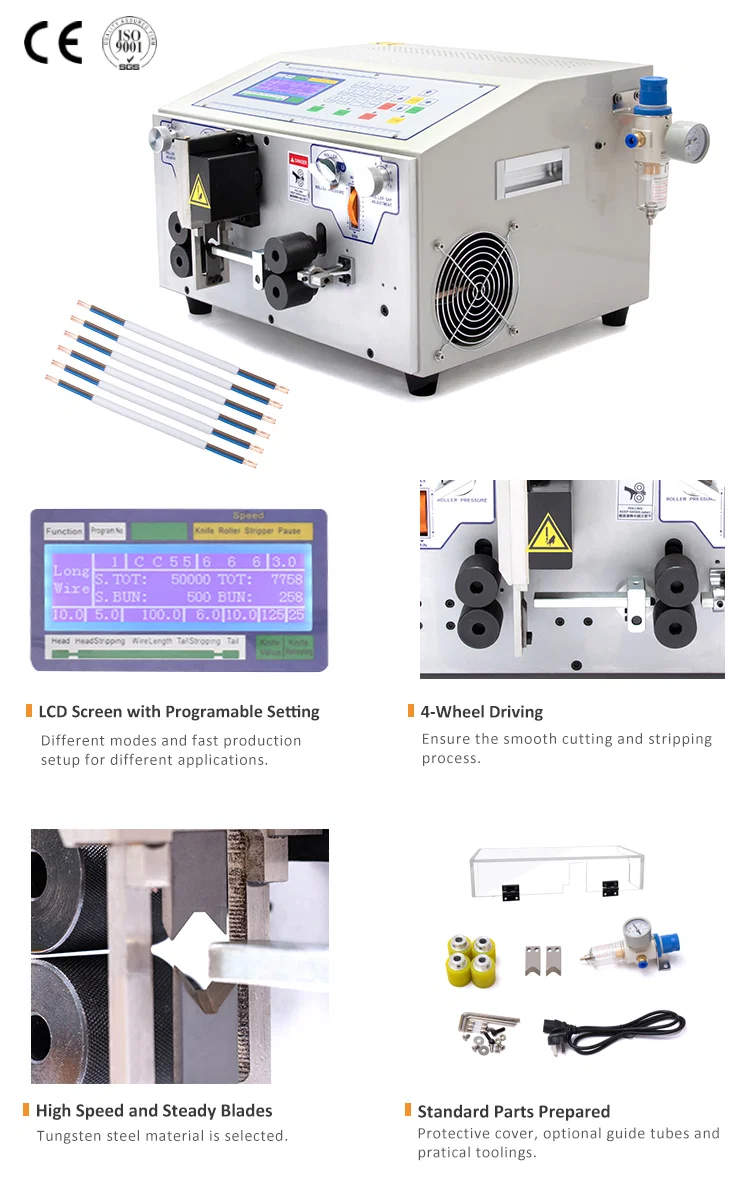

Automatic flat cable stripper and cutter machine WPM-09BHT, Flat Cable Stripping Machine, Wire Cutting Stripping Machine, Wire Stripping Tool Product
Features:
Automatic Full Computer Wire Stripping Machine
Adopt advanced automation technology from Japan, and Taiwan.
It is a kind of numerical control equipment.
  Apply for:
Widely used in the electronics industry, the city has electrical appliances, motors, lamps, toys,
and other various products of wire processing.
Optimal stripped wire PVC/Teflon/silica gel line /. Glass fiber, etc.
Specification:
Available Wire Cross-Section Range: 0.1～6.0mm2
Conduit Diameter: Customized flat conduit as the wire size
Cutting Length: 1～60000mm
Cutting tolerance: ± (0.002 × L) (Cutting length)
Stripping Length: Head 0~50mm, Tail 0~50mm
Middle Stripping Section: Max 13
Speed: 3000-6000pcs/h
Display Way: English LCD
Drive Mode: 4 Drives
Blade Material: Hard tungsten steel
Appropriate Wire: Flat jacket wire, strip inner and outer insulations
Power Supply: 220V/50Hz 110V/60Hz
Power Rating: 300W
Measurement: 390X350X255mm
Weight: 37kg
